Lilitab Picture Mount Pro Vesa 75 compliant tablet mount
Click to enlarge


$0.00

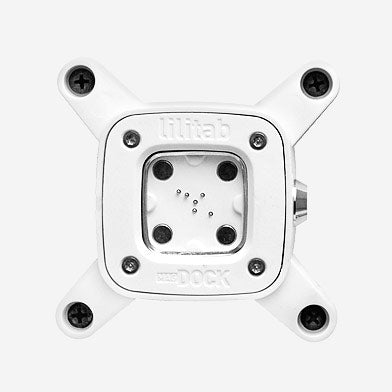

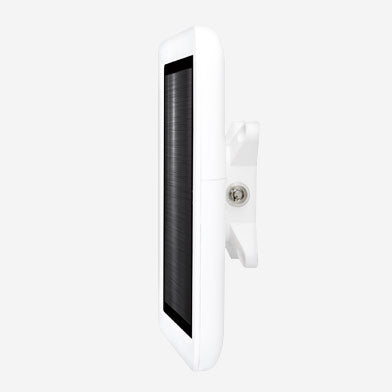

Protruding barely 2" off the wall, the Lilitab Picture Mount complies with all ADA requirements for circulation areas, not needing a separate cane guard. It attaches easily to any wall or surface, and can be set up with either our Pro series keyed docking or Smart series software docking systems. VESA 75 compliant, this mount is compatible with any 3rd-party monitor arm.

Note: Screws to attach to your Picture kiosk are not included. You know what your wall is made from, we don't.

No exposed cables. All Lilitabs route the cabling internally through the kiosk ensuring no exposed cables are damaged or stolen.

Convenient charging. All of our kiosks feature the ability to keep your tablet continuously charged by plugging it into a wall outlet or adding an external battery pack.

Accessorize. Add a Credit Card, RFID, Barcode reader or more via our integrated accessory panel system.

Future-Proof. Changing tablets? No need for a new kiosk, just swap-out silicone bumpers and corner panel and you're done!

Radio transparent. Because there is no metal in our head unit, it won't interfere with your tablet's various signals (WiFi, 5G, and Bluetooth). That gives you maximum range and data throughput.

DOCUMENTATION

Picture Pro Info Sheet
Picture Pro Instructions
Picture Pro Dimension Drawing (H Head)
Picture Pro Dimension Drawing (P Head)

basic lineBASIC MOUNT

Advanced functionality on a budget. The Lilitab Basic Line offers a cost-effective way to deploy public-facing tablets. The Basic Line can accept all out head types supporting multiple tablets, including iPads, Samsung and Windows tablets. Your Lilitab Head choice attaches via six security screws and is fixed (no tilt). It's best suited for installations where the kiosk is set up once, without user requirement to adjust the tilt of the head. If you'll be setting up and taking down your kiosks regularly (for example, when attending tradeshows or events), or require user-operated tilt for ADA or accessibility reasons, we recommend our Pro Line with their advanced MagDOCK locking dock.


pro linePRO MOUNT

The Lilitab Pro Line offers the increased functionality of our patented MagDOCK with user-operated tilt and a locking/docking mechanism that enables quick tablet access, and zero downtime with a turn of the key.

No cables to connect or screws to fiddle with—simply dock the head unit on the mount and it starts charging.


smart lineSMART MOUNT

The Lilitab Smart Line's patented SmartDOCK provides all the features of the Pro Line while enabling secure, seamless tablet sharing—providing both mobility and enterprise-grade security without the need for a physical key.

With the Lilitab Smart Line, staff can unlock the tablet with the touch of an on-screen button. Once unlocked, the Head Unit can be removed from the dock and used in hand-held fashion for easy assisted-selling, maintenance, or to access the tablet.

When finished, simply place the Head Unit onto the dock in any orientation, where it will automatically lock in place and begin charging—no cables to connect.

While in-hand, an audit trail ensures the chain of custody is maintained until the tablet is returned to the mount.

H HeadH HEAD

Fits 9.7"-11" iPads and some Samsung Tablets

Compact Control. The Lilitab H Head is very compact, barely larger than the tablet itself. It includes integrated volume and power button controls for all iPads (they can be disabled to prevent access) and it can accept one accessory via its expansion panel.

Future Proof. The H Head’s changeable button/camera panel and swappable internal bumpers can be changed out to support different tablets as your needs change over time.

Functional. Accessories include Handle, Headphone Mount, Headphone Jack Extension, eDynamo EMV/Swipe Card Reader, RFID reader, ID Scan Shelf and Keyboard Mount.


P HeadP HEAD

Fits the iPad Pro 12.9” and Windows Surface Pro tablets.

Compact Control. The Lilitab P Head is very compact, barely larger than the tablet itself. It includes integrated volume and power button controls for all iPads (they can be disabled to prevent access) and it can accept one accessory via its expansion panel.

Future Proof. The P Head’s changeable button/camera panel and swappable internal bumpers can be changed out to support different tablets as your needs change over time.

Functional. Accessories include Handle, Headphone Mount, Headphone Jack Extension, eDynamo EMV/Swipe Card Reader, RFID reader, ID Scan Shelf and Keyboard Mount.

Graphic production lead time is three (3) days (+ shipping time) from the submission of acceptable artwork. Rush production is available for an additional fee. Contact us for more information.


faceplate graphic

FACEPLATE GRAPHIC

Brand your kiosk with edge-to-edge, full graphics on the Lilitab faceplate. This hard-wearing, full-color image is printed directly onto the Lilitab faceplate and it will not run, fade or crack. It’s also UV resistant. This is NOT a vinyl appliqué and it’s available for all faceplate and head units. To order, click here.

NOTE: The cost of the faceplate graphic DOES NOT include the cost of the faceplate itself (a faceplate of your choice is included with your kiosk purchase). You can purchase additional faceplates in the Accessory section of our catalog.




faceplate logo

FACEPLATE LOGO

Brand your kiosk with your company logo (up to 3”W x 1”H) on the Lilitab faceplate. This hard-wearing, full-color image is printed directly onto the Lilitab faceplate and it will not run, fade or crack. It’s also UV resistant. This is NOT a vinyl appliqué and it’s available for all faceplate and head units. To order, click here.

NOTE: The cost of the faceplate graphic DOES NOT include the cost of the faceplate itself (a faceplate of your choice is included with your kiosk purchase). You can purchase additional faceplates in the Accessory section of our catalog.




floor front

FLOOR FRONT

With our single-sided 12” x 30” graphic panel, you'll be sure to attract customers. This panel is custom fabricated from a lightweight and stiff PVC material. It comes with mounting brackets and hardware to attach to the front of your Floor kiosk. To order, click here.








floor backdrop

FLOOR BACKDROP

With our double-sided 1’ x 6' graphic panel you'll be sure to attract attention! This panel is fabricated from a super lightweight and stiff aluminum composite material and comes with mounting brackets and hardware to attach to the rear of your Lilitab Floor tablet kiosk. To order, click here.








counter backdrop

COUNTER BACKDROP

With our double-sided 12” x 2' graphic panel you'll be sure to attract customers. This panel is fabricated from a super lightweight and stiff aluminum composite material and comes with mounting brackets and hardware to attach to the rear of your Lilitab Floor tablet kiosk. To order, click here.







PRINTER MOUNTS
Print receipts on the spot. This printer mount accepts the Star Micronics TSP range and Brother QL-820NWB bluetooth thermal printers.
Compatible with Floor

ID & BARCODE SCANNING
Scan away. When you need to scan critical data from your user, our iPad ID Scan Shelf, iPad Barcode Scanner and iPad ID Scanner seamlessly integrates with any of our iPad kiosks. They enables the capture of barcodes & ID sized images via the iPad's rear-facing camera.

Note 1: The ID Scan Shelf comes in Black only, to increase the contrast between the card and the surrounding shelf, and to reduce glare in the resulting image.
Note 2: After-market purchases must include your head and tablet versions provided in the notes of your order.

PAYMENT MODULES
Accept payments. Lilitab supports the Magtek eDynamo, Ingenico Mobi 5500 & Stripe BBPOS Chipper 2X BT payment modules. These credit card readers accept payment via dip, swipe & tap connecting to your tablet via bluetooth. Our powered accessory enclosure tightly integrates them into the Lilitab tablet system, securely mounting them and providing power to keep them charged, all with no exposed cables.

Note 1: Magtek eDynamo, Ingenico Moby 5500 & Stripe BBPOS 2X Chipper not included, must be ordered separately.

RFID ACCESSORY ENCLOSURES
Attach an RFID Reader to your Lilitab Kiosk. These powered accessory enclosures are designed to securely hold your choice of the Rf IDEAS Wave ID USB reader (Apple USB-C Digital AV Multiport Adapter or Apple Lightning to USB3 Camera Adapter), bluetooth ACR1255U-J1 or bluetooth Serialio ID Champ and fit our H and P head styles.

These devices can be configured for keyboard wedge input to your webpage / app or via SDK integration with your iOS app.

KEYBOARD MOUNT
Type away.Our keyboard mount for the Lilitab Tablet Kiosk System accepts an Apple Magic Keyboard and comes in anodized aluminum to match the Apple keyboard perfectly. It's retained by allen head screws, ensuring zero theft. It can attach to the Lilitab Floor, Counter, Surface or Wall Basic (NOT recommended for the Wall Pro) and can be used in landscape or portrait orientation.

Note 1: You must specify whether you want the Keyboard Mount installed for Landscape or Portrait orientation, in the notes of your order.
Note 2: This accessory is not available for after-market purchase; if you want to add a Keyboard Mount to your existing kiosk, you'll have to send your head unit to us to be retrofitted.

FLOOR HEADPHONE MOUNT
Turn it up. Adding voice over or music to your iPad kiosk experience can really make an impact. With our headphone mount it couldn't be easier. It attaches to the upper mount point on the rear of your Lilitab Floor. When used with our H or P Head, the headphones plug directly into the side of the enclosure.
Compatible with Floor

HEADPHONE MOUNT
Turn it up. Adding voice over or music to your iPad kiosk experience can really make an impact. With our new accessory headphone mount it couldn't be easier. It attaches to any of our head units on your Lilitab tablet kiosk and works with any of our mounts. It attaches to the Home button side of your enclosure. When used with our H or P Head, the headphones plug directly into the side of the enclosure.

Adding voice over or music to your iPad kiosk experience can really make an impact. With our new accessory headphone mount it couldn't be easier. It attaches to any of our head units on your Lilitab tablet kiosk and works with any of our mounts. It attaches to the Home button side of your enclosure.
